HDZero Whoop V2 Bundle
HDZero Whoop V2 Bundle
Couldn't load pickup availability
Whoop V2 VTX Specifications:
|
Feature |
Whoop V2 VTX |
Whoop Lite VTX Comparison |
|
Supported Cameras |
All HDZero MIPI cams |
|
|
Video Resolution / Frame Rate |
720p60 / 540p90 / 1080p30 |
|
|
RF Power Output |
25 mW / 200 mW |
|
|
Frequency Range |
5.725 – 5.850 GHz |
|
|
RF Connector |
Secured U.FL with brass bar |
Standard U.FL (no retention bar) |
|
Video Connector |
MIPI |
|
|
Durability / PCB |
Thicker PCB for impact resistance |
Thinner PCB – more prone to damage |
|
Wiring / Install |
Pre-soldered wire harness |
Manual soldering required |
|
Size |
31 × 31 mm (29 × 29 inner) |
32.5 × 32.5 mm (29 × 29 inner) |
|
Mounting Pattern |
25.5 × 25.5 mm (M2) |
|
|
Weight |
5.4 g (5.1 g w/o wires) |
4.9 g (4.6 g w/o wires) |
|
Board Thickness |
~1.6 mm |
~1.2 mm (no shielding) |
|
Power Input |
3 – 12.6 V (1S – 3S) |
|
|
Power Consumption |
5 – 6 W |
|
|
Control / OSD |
MSP OSD / Smart Audio |
|
|
Recommended Use |
80 mm whoops – 4″ micro drones |
65 – 85 mm whoops |
|
Mounting Hardware |
M2 grommets + brass bar included |
M2 grommets only |
|
Antenna Included |
Not included |
|
|
Alternative for Ultralight Builds |
HDZero AIO (FC + VTX, AHD interface) |

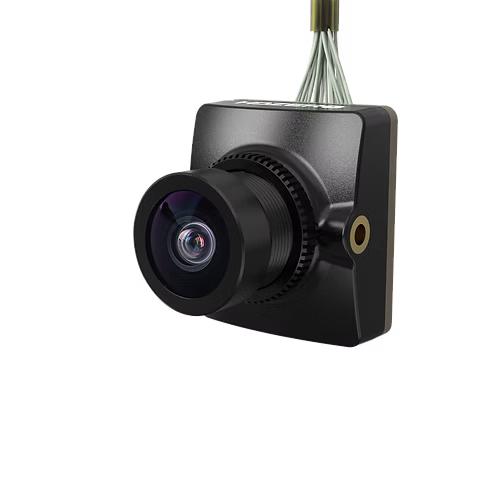

Nano V3 Camera Specification:
|
Size: |
14x16x14mm |
|
Weight: |
2.2gram |
|
Sensor: |
0.5 inch, up to 10650 mV/Lux-sec Ultra-high sensitive CMOS sensor |
|
FOV: |
FOV D:155° H:126° V:94° |

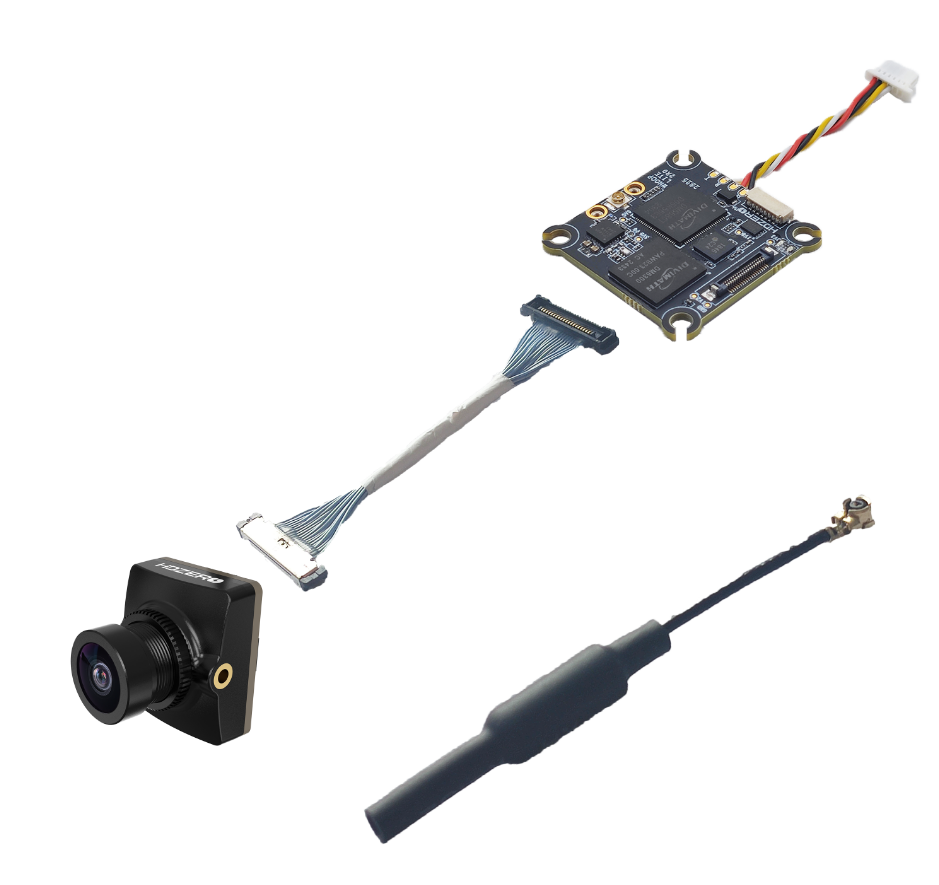

Includes
HDZero Whoop V2 VTX * 1;
HDZero Nano V3 Camera * 1;
Dipole Antenna * 1;
40mm Mipi Cable * 1;
Rubber Grommet (M3 to M2) * 4;
u.FL Antenna Retention Screws * 3;
Metal bar * 1
