HDZero Freestyle V2 Kit
HDZero Freestyle V2 Kit
Couldn't load pickup availability
Description

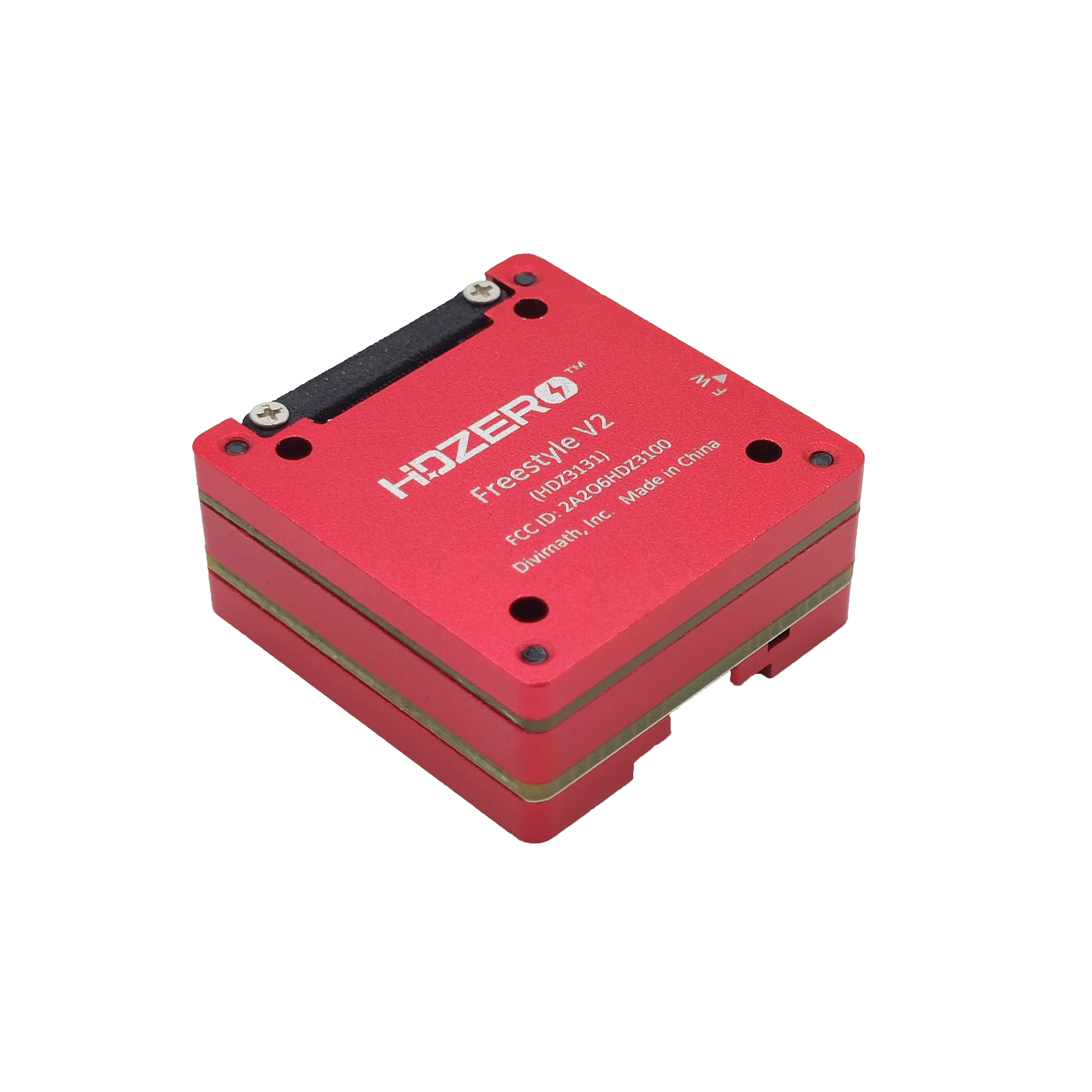

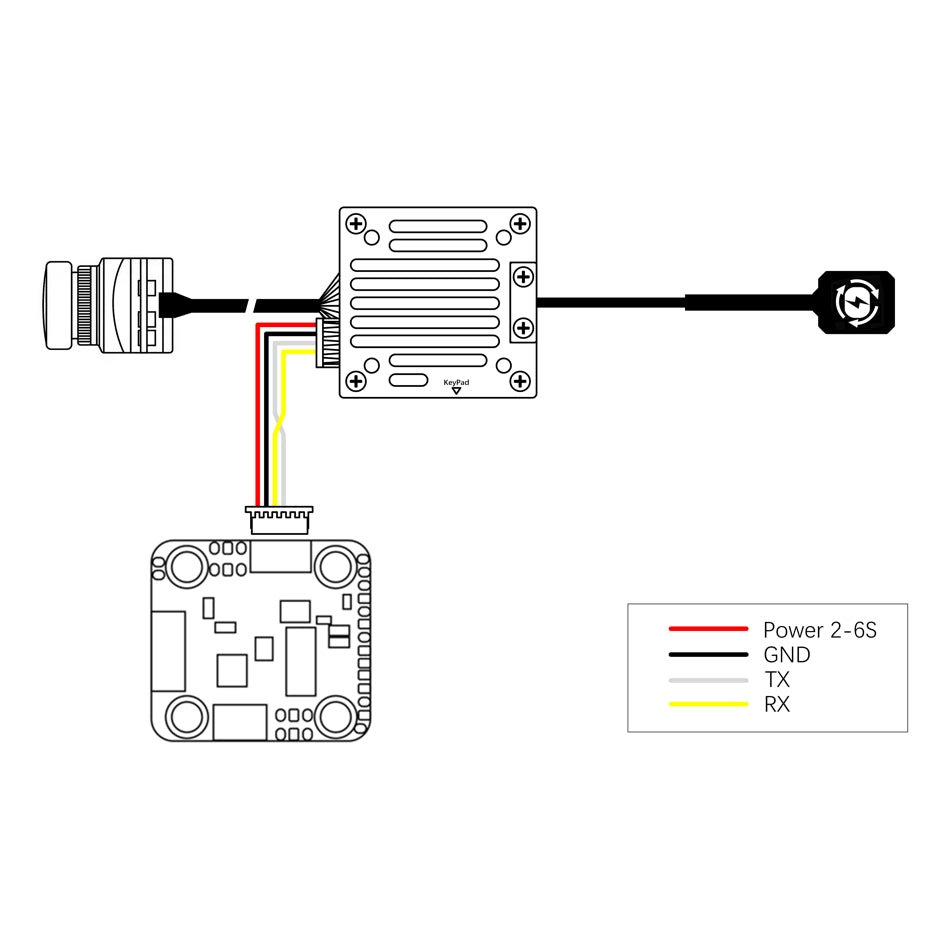

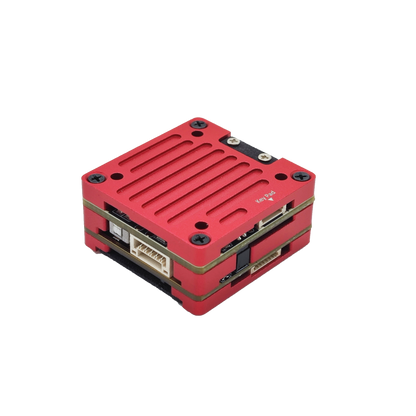

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.
The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.
The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.
Specifications
|
Manufacturer |
Divimath, Inc |
|
Model |
HDZero Freestyle V2 VTX |
|
Weight |
22.3 g |
|
Dimensions |
29x30x14mm |
|
Operating Frequency |
5.725-5.850GHz |
|
Transmitter Power |
25mW,200mW |
|
Mounting Pattern |
20x20mm M2 holes |
|
Antenna Interface |
Secured U.FL |
|
Video In |
Secured MIPI |
|
SmartAudio |
Yes |
|
MSP Canvas Mode |
Yes |
|
Input Power |
7-25V |
|
Operating Temperature |
32˚F-104 ˚F (0˚-40˚C) |
|
Power Consumption |
6-15W |

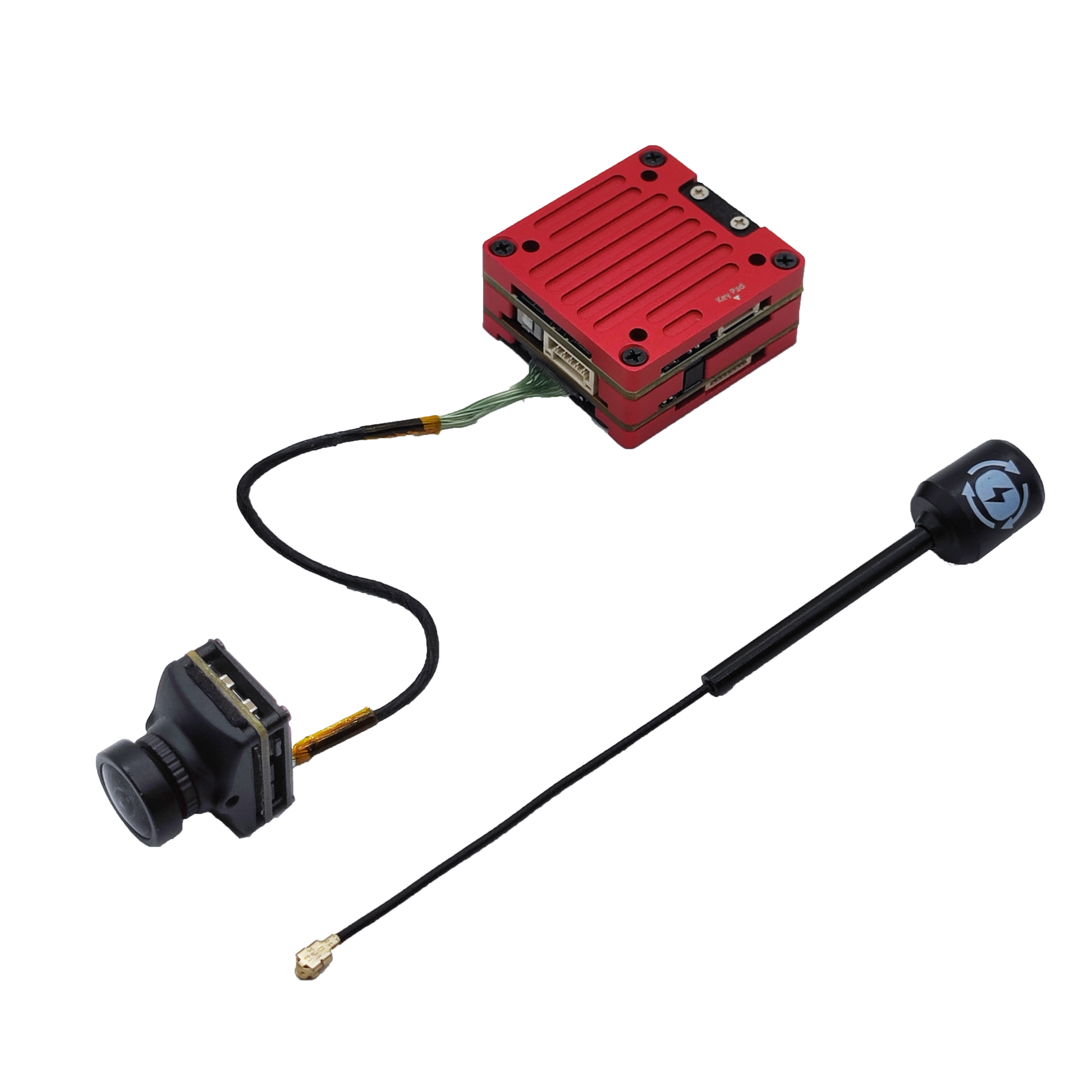

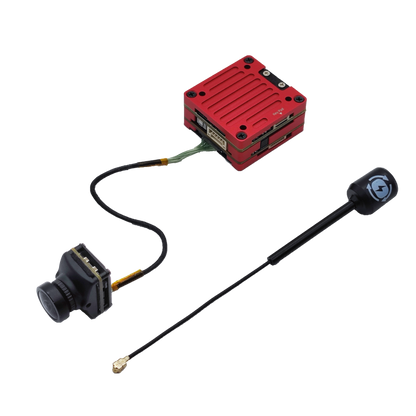

Includes
- 1x Freestyle V2 VTX
- 1x Nano 90 Camera (with 19 x 19 Mount)
- 1x HDZero RHCP antenna
- 1x 120mm Mipi Cable
- 1x Power Cable
- 1x SA Cable
- 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
- 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
- 1x Double Sided Tape (29 x 30 x 1mm )
Share
Had my first flight ever today and did it with the Freestyle V2 kit. I was blown away. Picture was exceptionally clean and latency was non existent. I don't even care what the competition has, HDZero is going to be my go to for all future builds.
This is the second or third time purchasing this. It’s simply a great product! Easy to install (depends, of course, on what you are building!), and I love the absence of sevwere latency! I don’t have any experience with any other HD setup, but still! Awesome HD videosystem!
Love this Digital VTX, it’s my first digital system that isnt DJI. Having the low latency is nice and I actually like the way it acts when you lose signal, lets you know without lagging or completely dropping out right away. Only thing I wish it had was a DVR or an option to record natively somehow and, a bit better heat/ power performance. But for what you’re getting latency wise, it’s a great product. I’ll be picking these up for my freestyle builds in the future for sure.
Love that it comes with the upgrade lens now! Works as expected and easy to unlock with the USB programmer

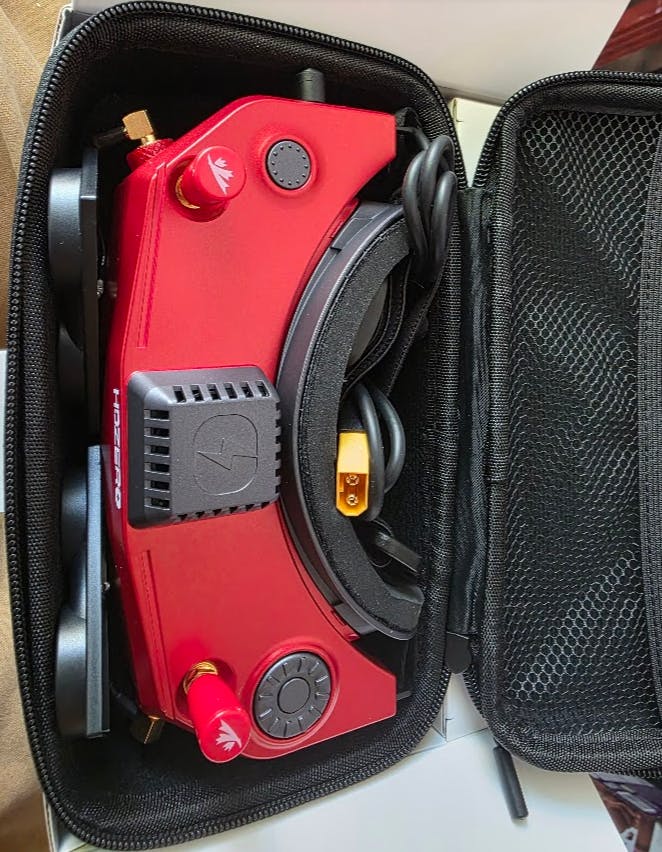

Was delivered fast and was surprisingly easy to bind to the goggles 2. It’s definitely a quality well built piece of equipment. Only 2 minor things I don’t like that are purely opinions. 1 is the camera has more of a fisheye view than i like but I ordered a different lens that fixes it. 2 is just getting acclimated to the hdzero ecosystem in general.
