HDZero Crux35
HDZero Crux35
Couldn't load pickup availability
Description

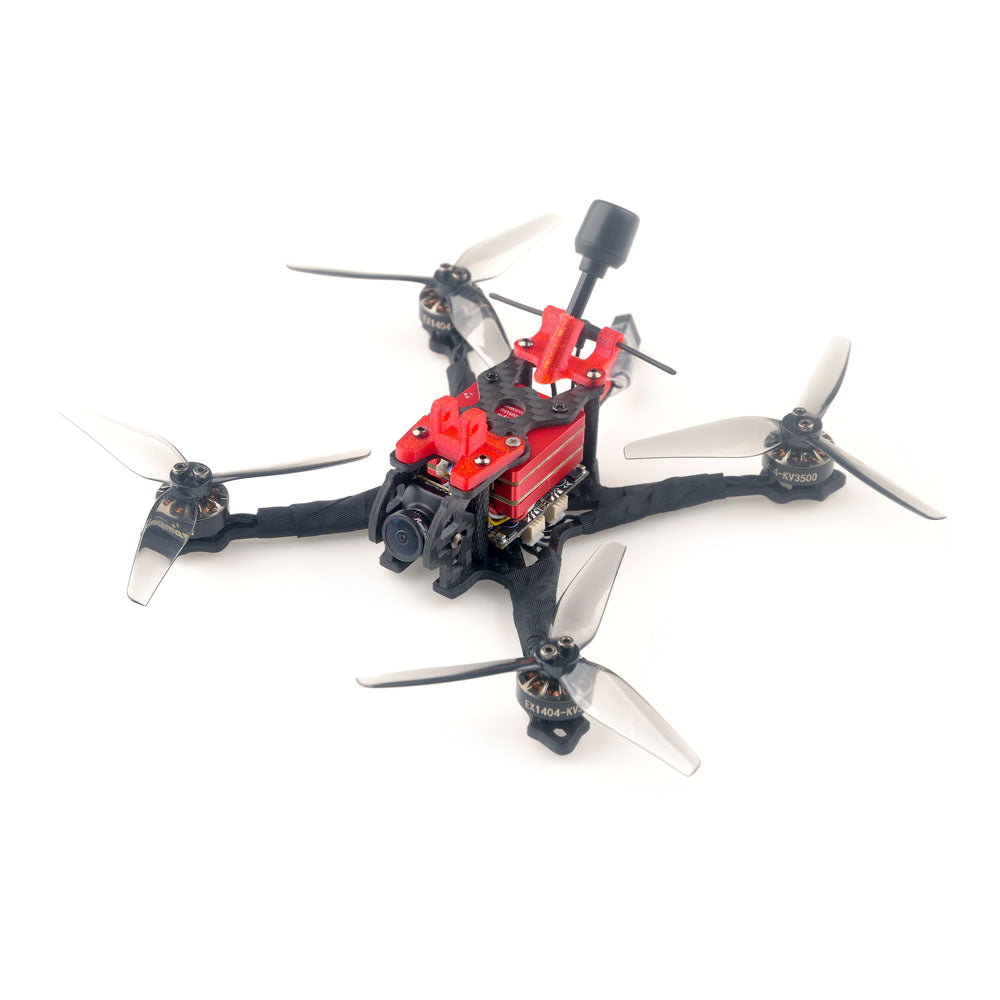

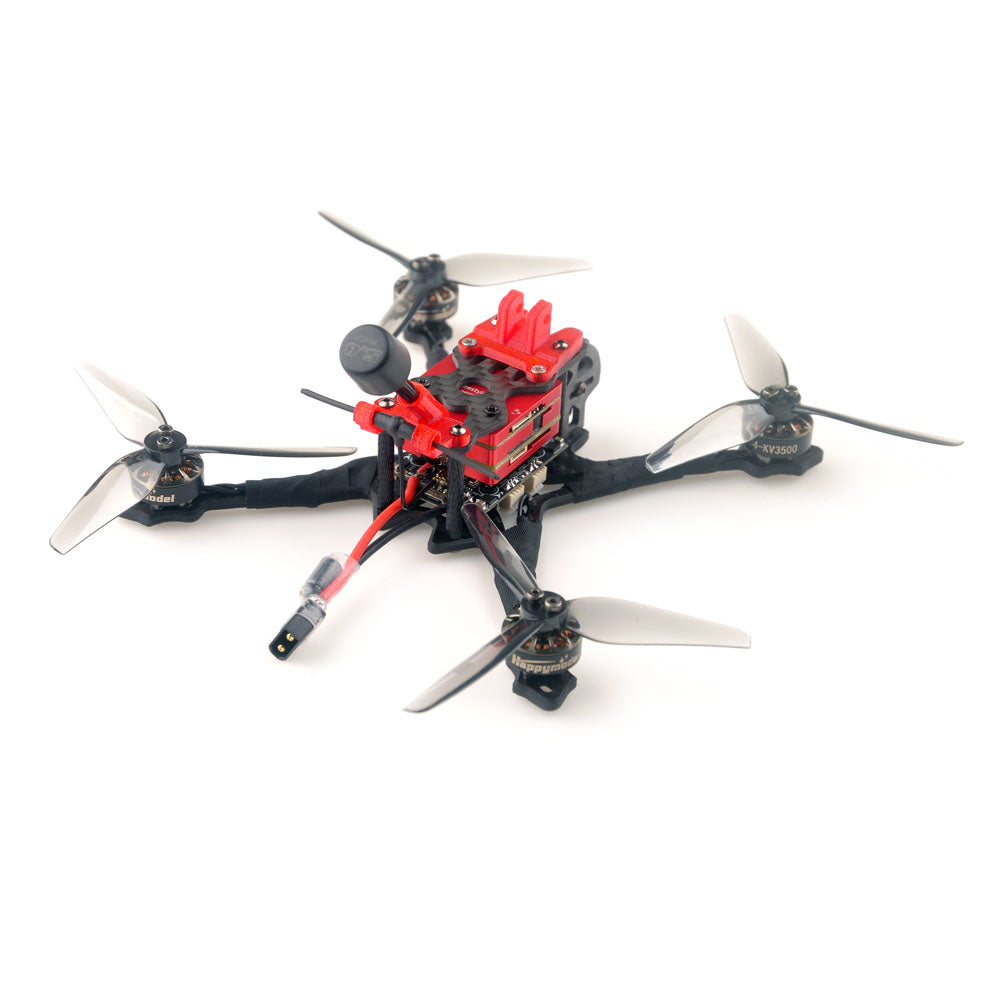

Ideal for backyard freestyle flying and park cruising. The HDZero Crux35 is a great choice for pilots looking for a 3.5in prop, sub 250g freestyle drone that includes HDZero’s highest power output VTX and fastest 90hz camera.
This drone’s small size allows pilots to fly in more locations, while the high-power output of the Freestyle v2 VTX delivers ample video reception to the pilot’s goggles. The fast 90hz HDZero Nano 90 camera offers a flying experience like no other – see for yourself the benefits of 3ms (14ms full frame) latency. This combination makes it easier than ever to fly into small gaps at high speeds with confidence.

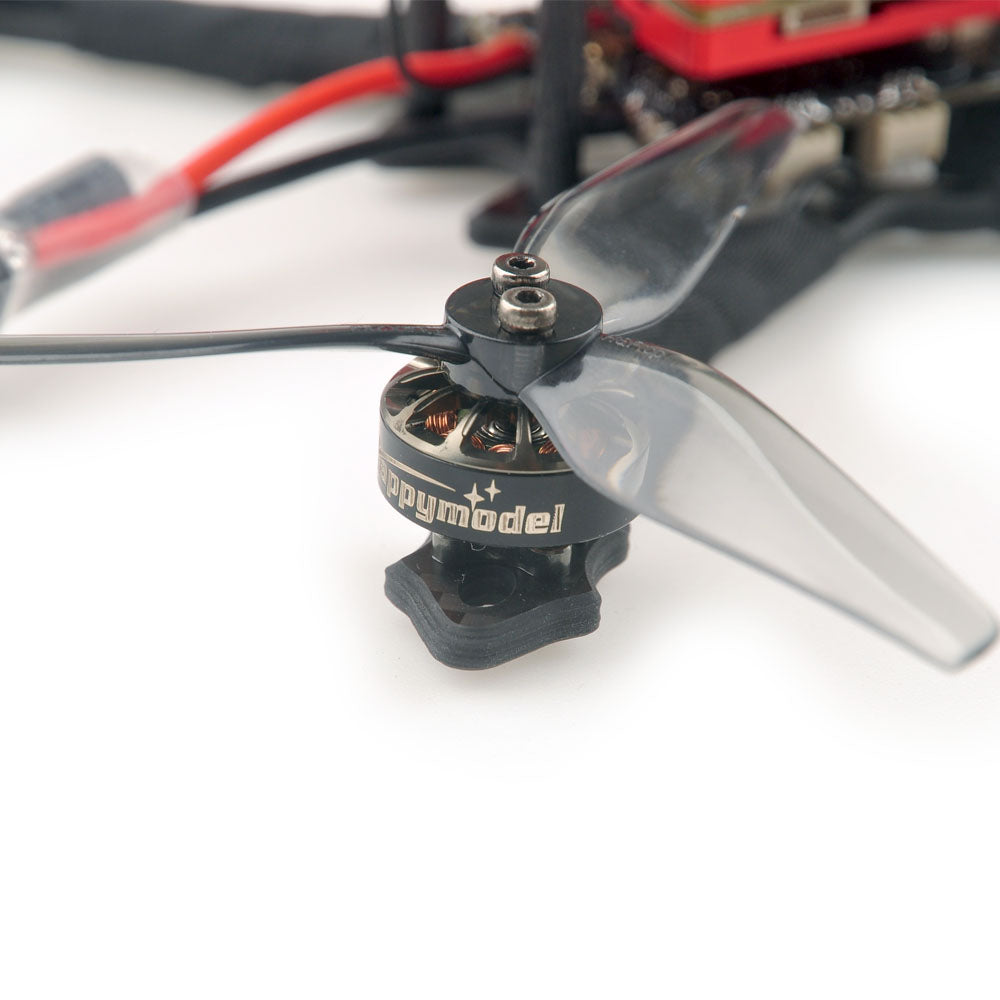

HDZero Crux35 uses Happymodel EX1404 high-efficiency motors and HQPROP 3.5-inch three-blade propellers resulting in a high thrust-to-weight ratio and long flight times.
Specifications
| Brand Name: | HDZero and HappyModel Co-branded |
| Model: | HDZero Crux35 |
| Frame wheelbase: | 150mm |

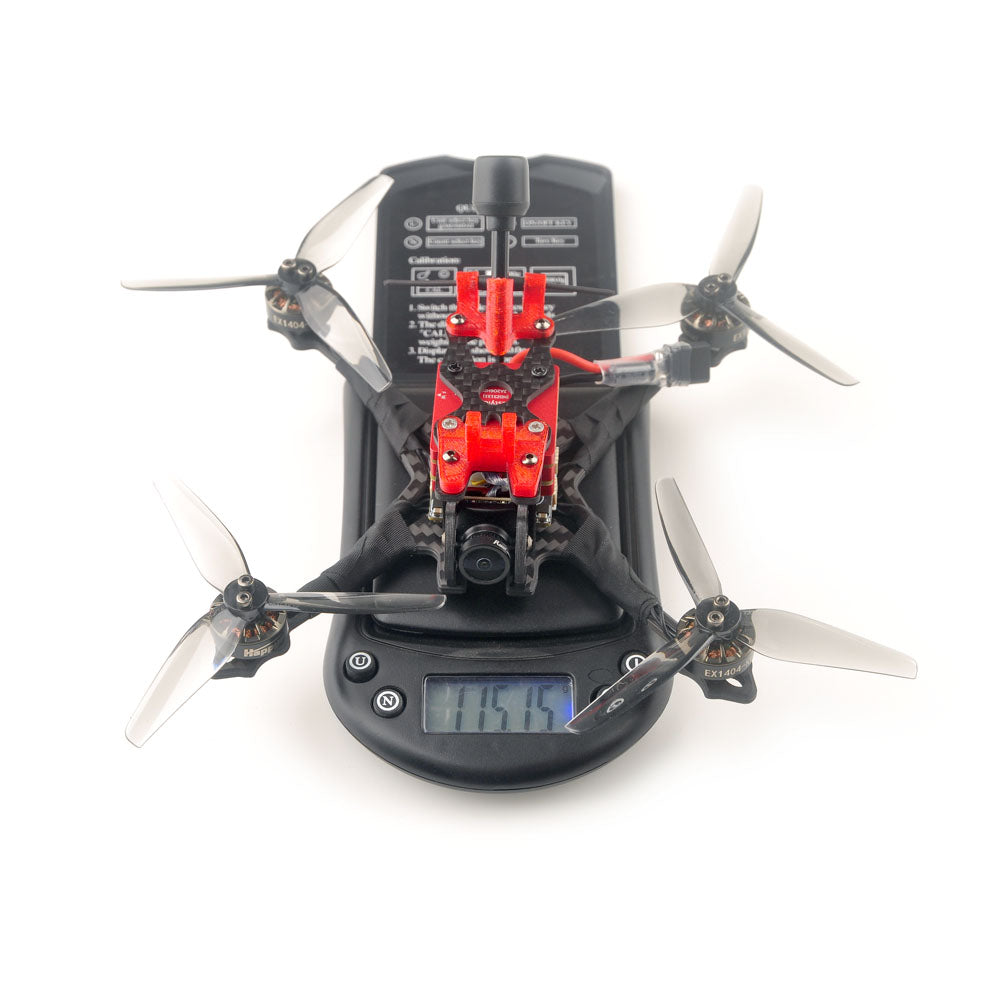

| Weight: | 115g without battery |
| Size: | 113mm * 113mm * 47mm |
| Receiver option: | UART ELRS v3.0 |
| Flying time: | 8min~12min 4s 750mah battery |

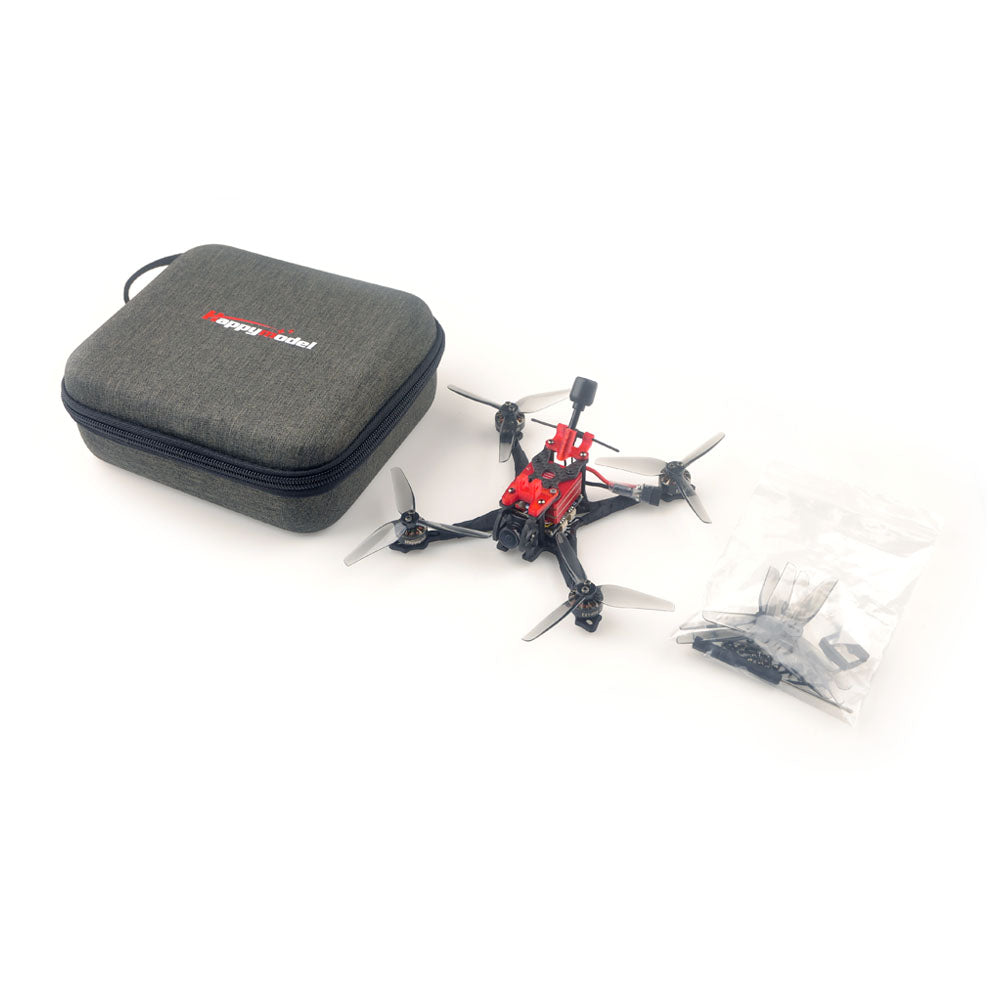

Includes
- Crux35 Frame * 1
- CurxF405 HD ELRS AIO Flight controller * 1
- HDZero Freestyle v2 VTX + Runcam Nano 90 Camera * 1
- Happymodel EX1404 KV3500 brushless motor * 4
- HQProp T3.5X2X3Grey (4cw+4ccw) * 1
- Screw Driver * 1
- Buckle Velcro for battery * 1
Share
The Crux35 is a blast to fly! Awesome power to weight ratio and a great value considering the included Hdzero VTX and camera
Awesome quad
Awesome toothpick for a decent price.
Double check screws and antenna connections upon arrival, some of mine were loose.
Unlocking the VTX was straightforward.

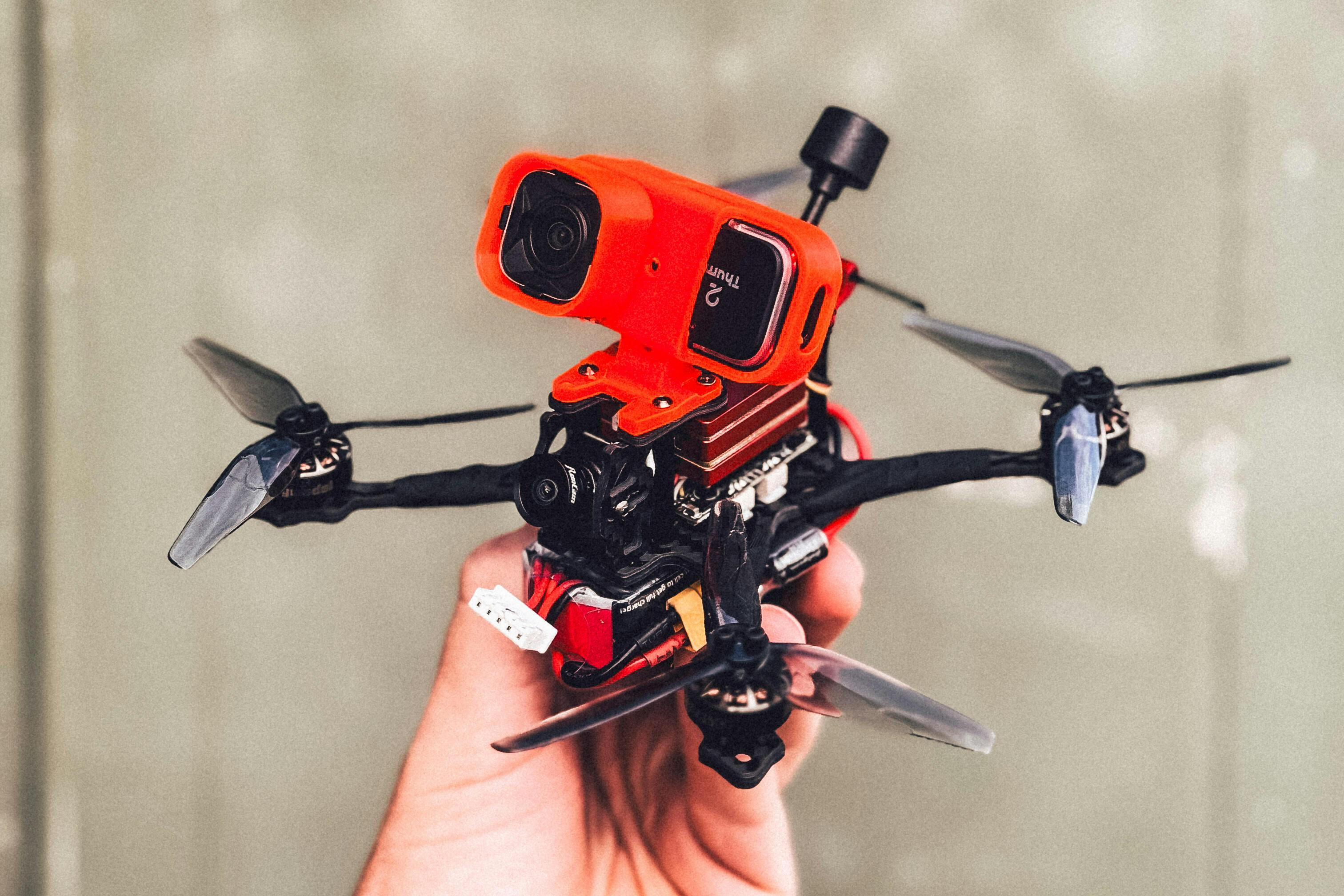

I recommend changing for the M8 camera lens for the best Field of View and throwing a Runcam thumb 2 on top for freestyle footage.

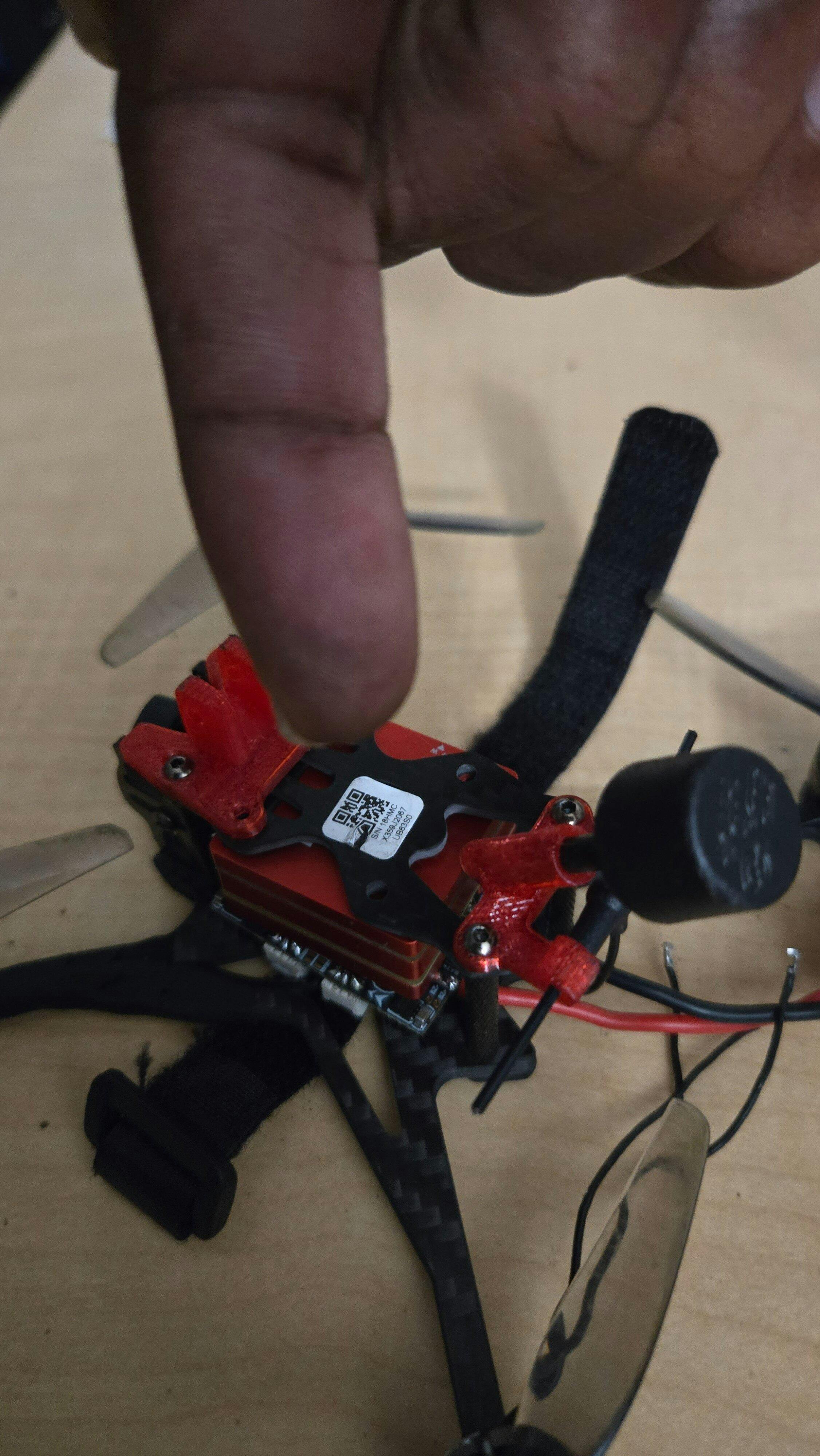

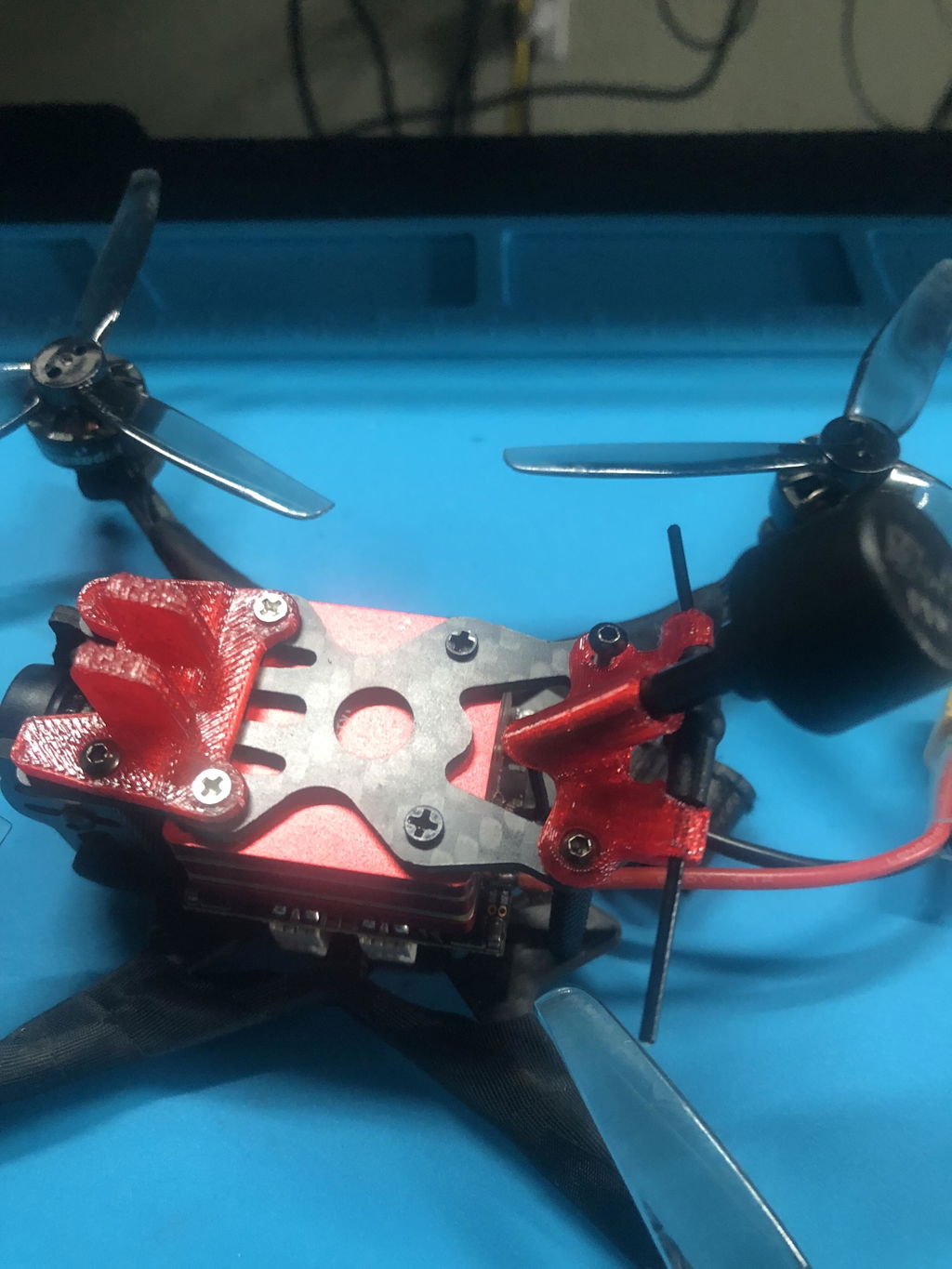

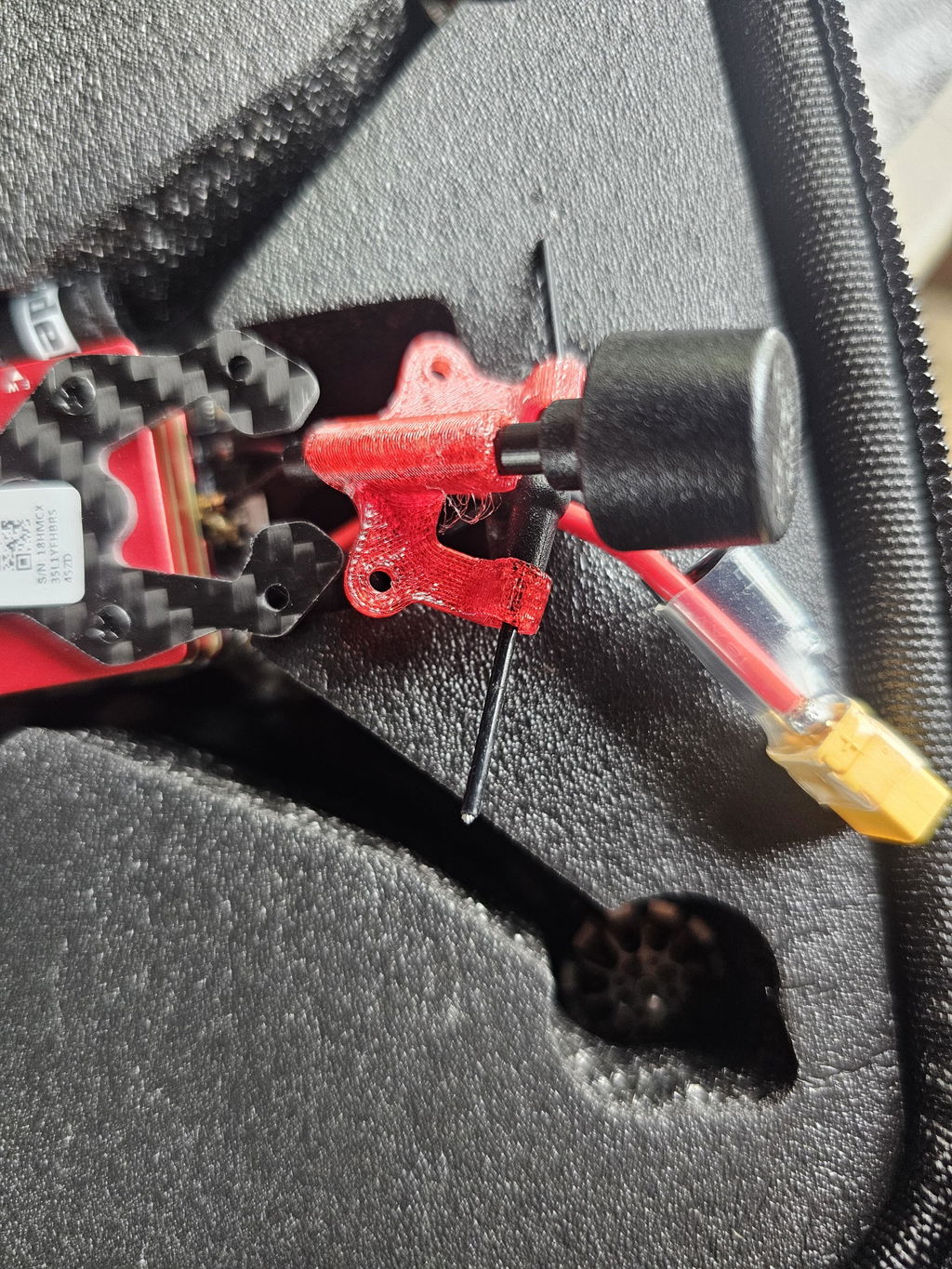

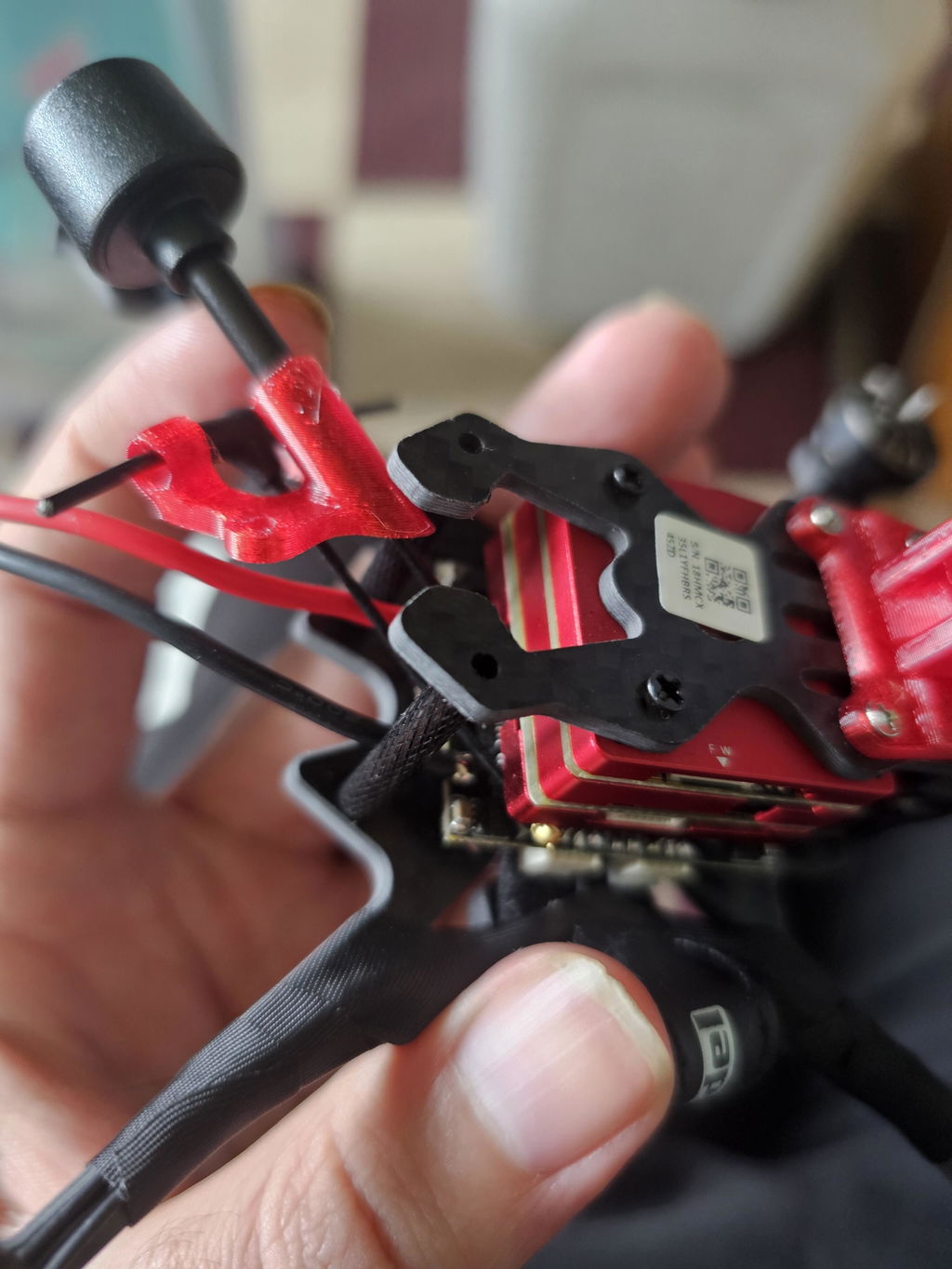

I absolutely love this little ripper, unfortunately, I need a complete set of screws, anybody have an idea where I can get those? Please help, I need to get back in the air!
I'm sorry to hear the screws came out to hold the vtx in place. The missing screws are M2 x 20mm and some M2 nuts. I recommend taping the VTX to the top plate with VHB tape in the interim. Also, I personally apply some E6000 to the M2 nuts to prevent them from backing off. Let's get you back in the air!

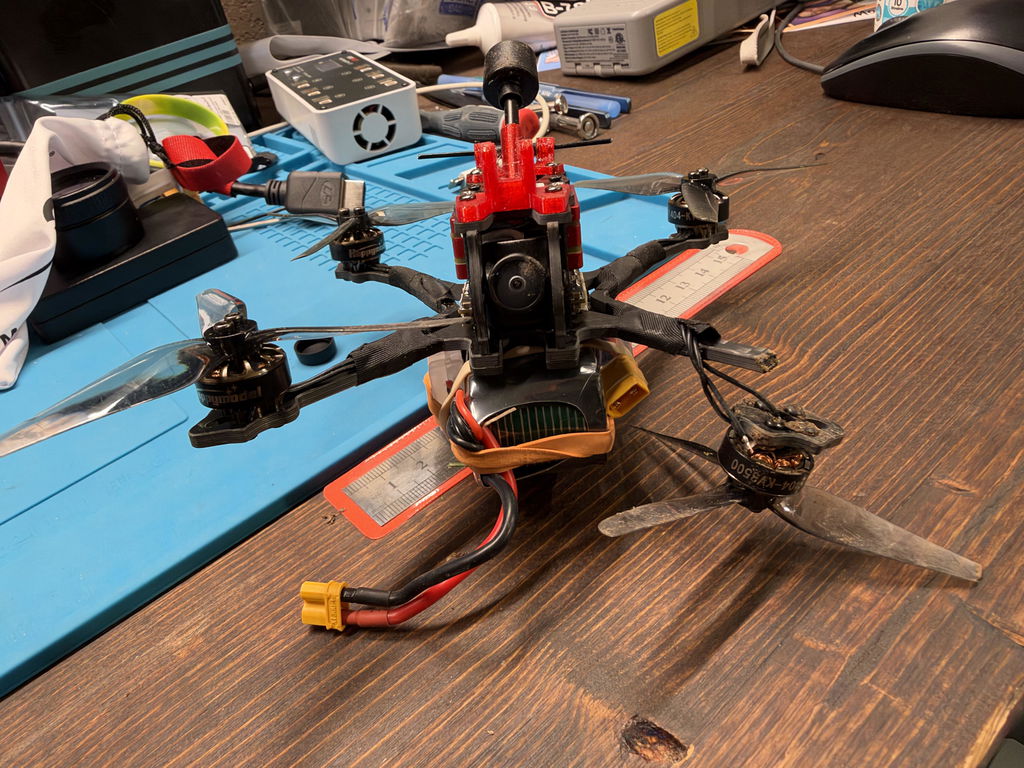

The Crux35 flies awesome out of the box...some quick control changes in Betaflight and binding to my RM Pocket and I was rippin around the back yard. VTX signal was great going to my BoxPro goggles. I have yet to test with my new Goggles 2, I'll update soon after I test them out.
