Happymodel Mobula6 Race HD

Description

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.

Specifications

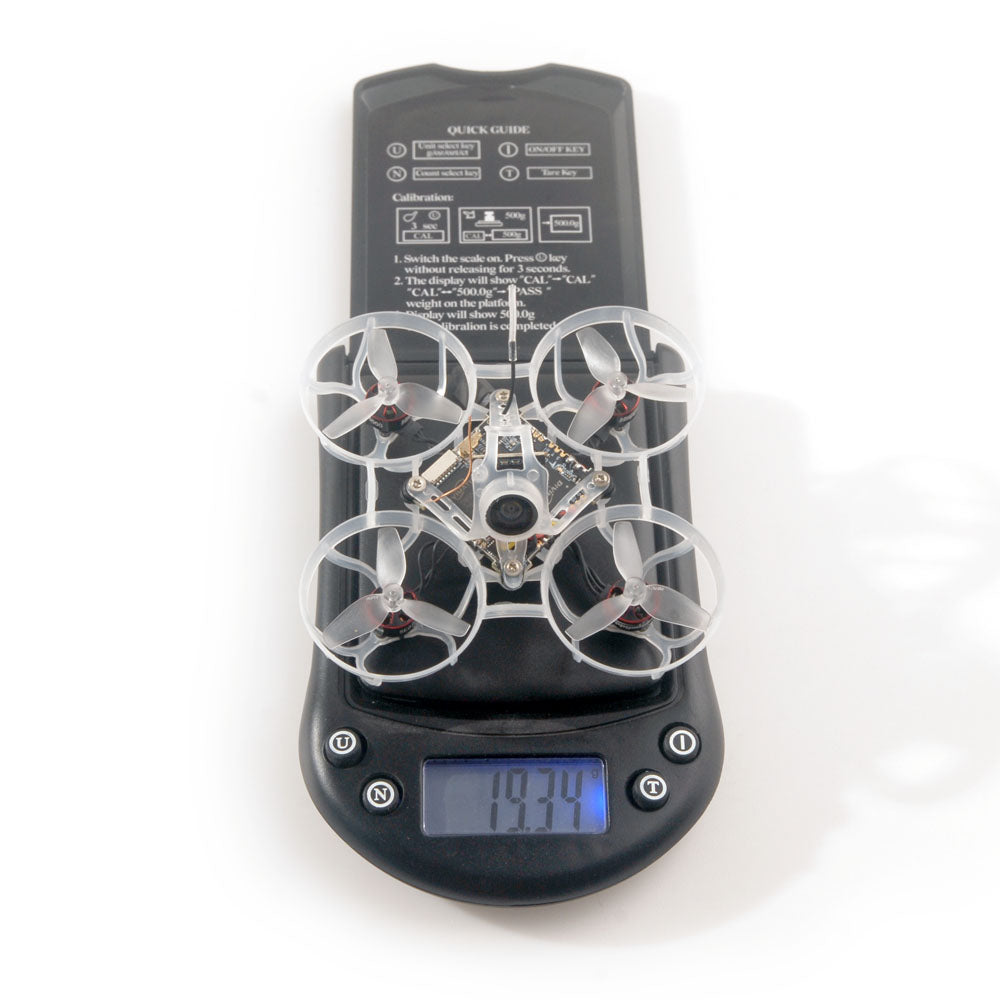

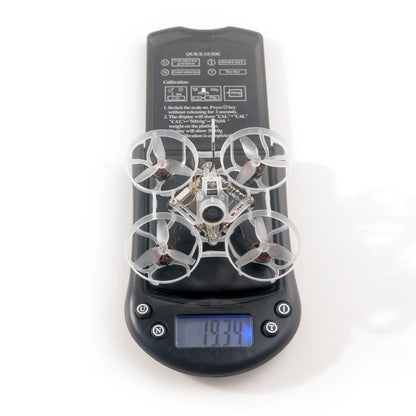

• Weight: 19.3g
• Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
• Propeller Size: 31mm
• AIO
  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
  • Bluejay ESC firmware pre-installed
  • Built-in 5.8G HDZero VTX
  • Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
  • Built-in 5V 1A BEC
  • Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
  • Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
• HDZero Eco Camera
  • Sensor size: 1/3 inch
  • Resolution: 720p60 4:3
  • FOV: D:150° H:120° V:98°
• Motors
  • Kv:28000
  • Stator diameter: 7mm
  • Stator length:2mm
  • Shaft diameter: Φ1mm
  • Weight:1.5g

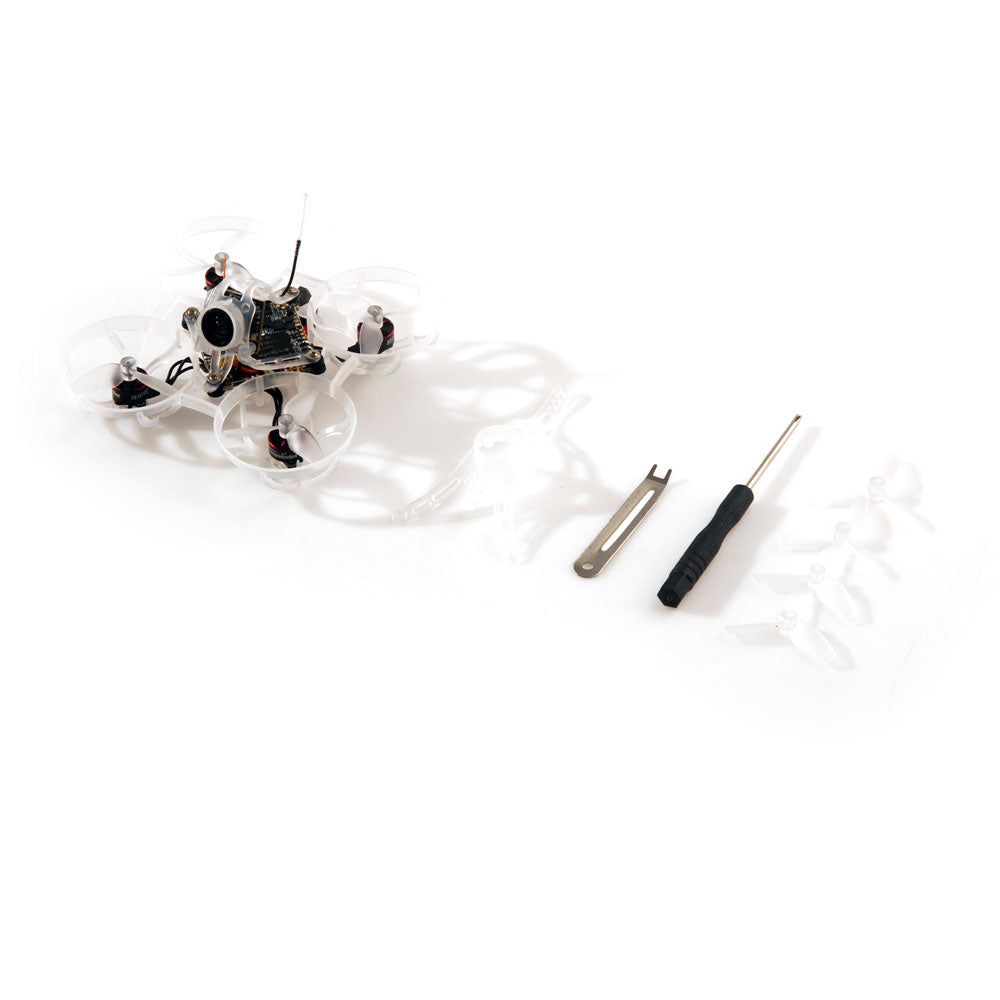

Included

• 1x Happymodel Mobula6 Race BNF
• 1x Spare canopy
• 1x Spare propeller(set)
• 1x Screw driver
• 1x propeller disassemble tool
