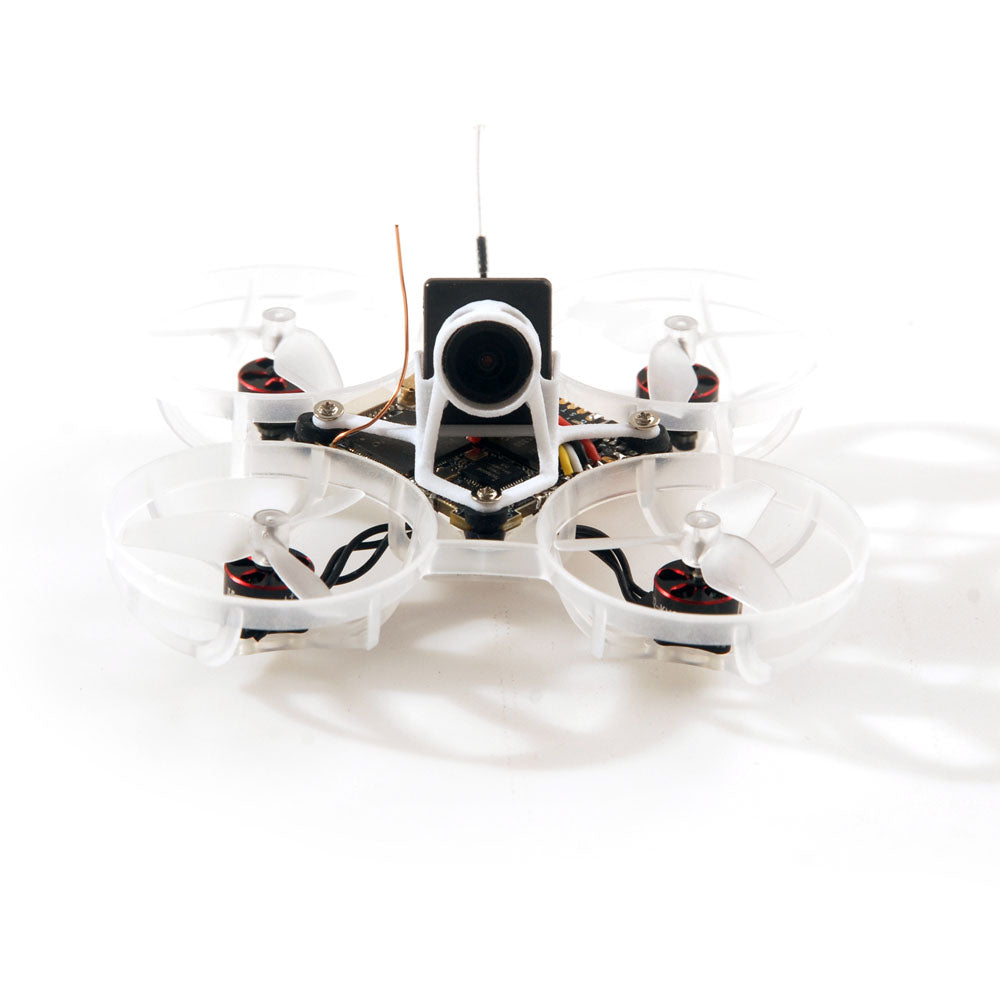

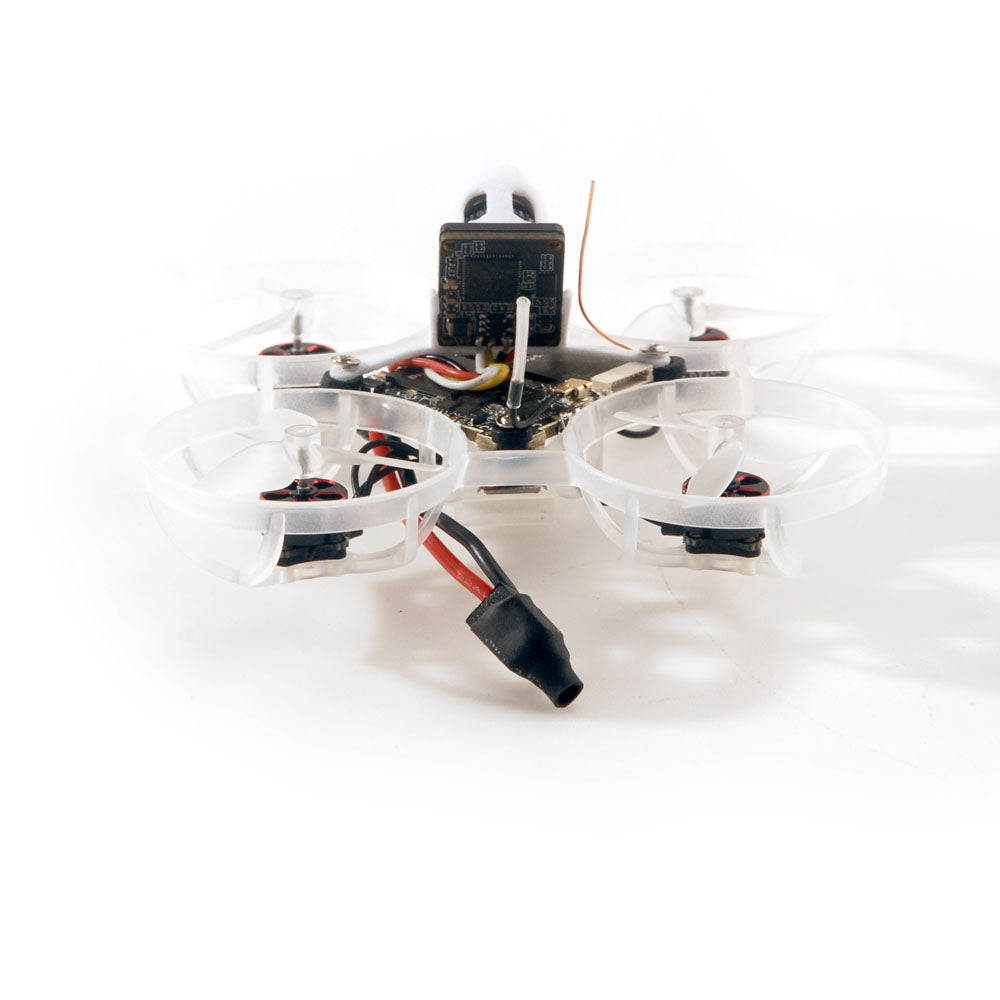

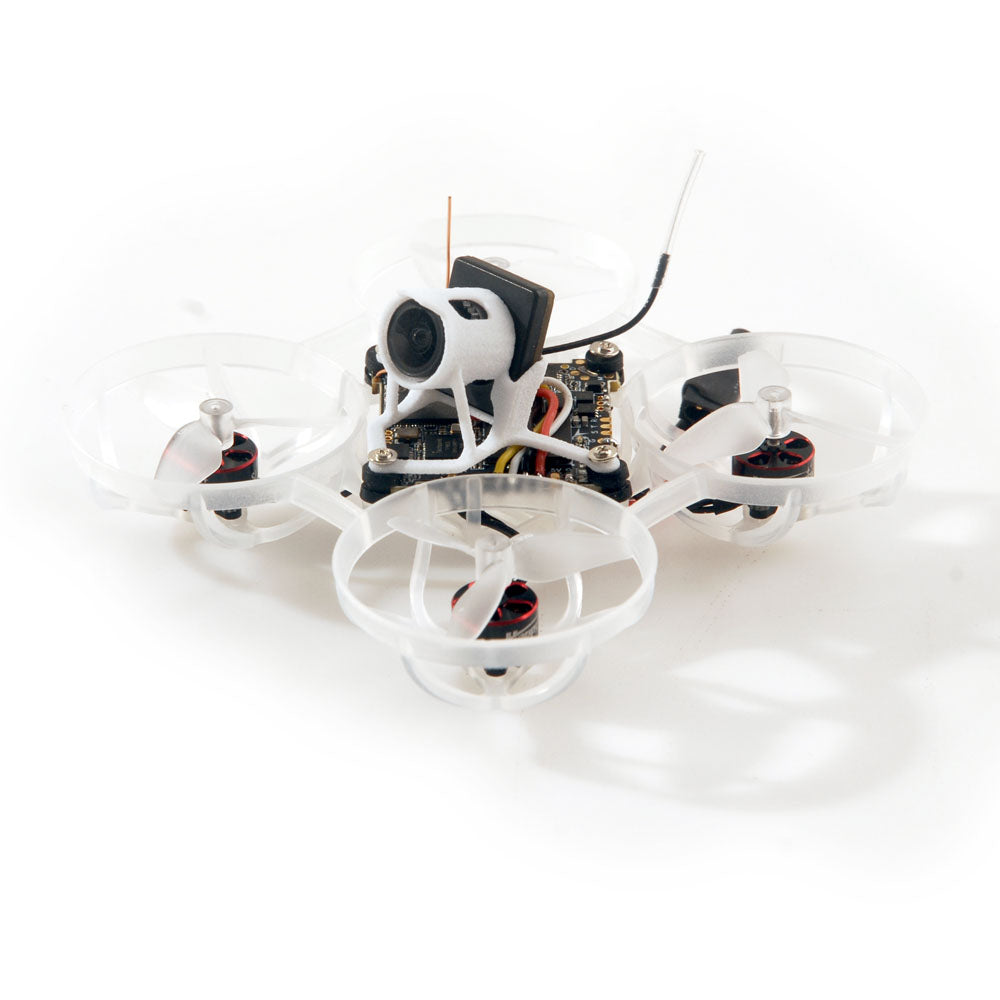

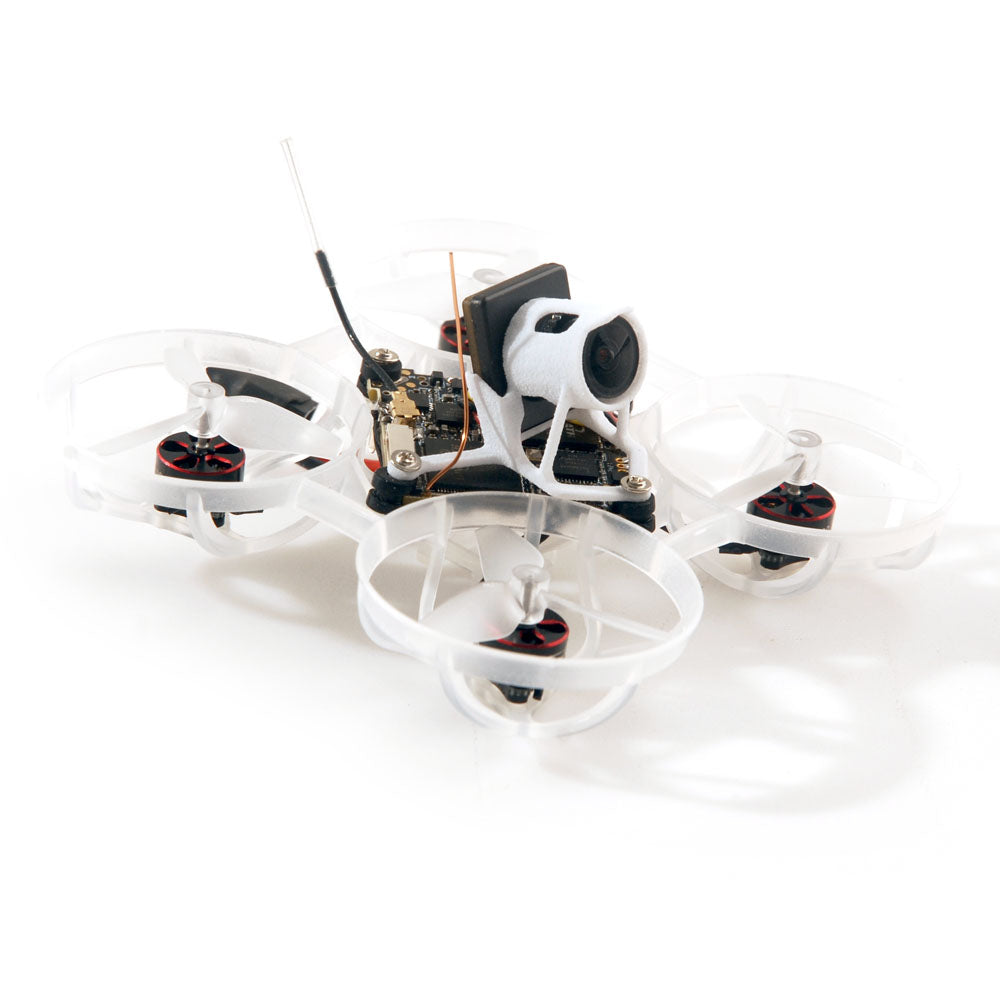

Happymodel Mobula6 Freestyle HD

Description

The Happymodel Mobula6 Freestyle HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.6g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

Focusing on freestyle flying, this whoop includes the Runcam HDZero Lux camera and a vibration-free fixed angle 25deg camera mount. The camera features a ½ inch CMOS sensor that delivers sharp image quality and excellent low-light performance. Lux camera has Wide Dynamic Range (WDR) and offers higher quality by oversampling (1080p ‐> 720p). The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability.

Optimized for a 4:3 aspect ratio, it can also be configured for a 16:9 aspect ratio with a reduced vertical FOV. The camera boasts a large 94-degree vertical FOV, ideal for fast indoor and outdoor proximity flying. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.

Specifications

• Weight: 19.6g
• Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
• Propeller Size: 31mm
• AIO
  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
  • Bluejay ESC firmware pre-installed
  • Built-in 5.8G HDZero VTX
  • Built-in SPI ExpressLRS 2.4GHz receiver compatible with ExpressLRS v3.0
  • Built-in 5V 1A BEC
  • Board size: 28.5x28.5mm with a 25.5x25.5 mounting hole size
  • Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 from factory
• HDZero Lux Camera
  • Sensor size: 1/2 inch
  • Resolution: 720p60 4:3 and 16:9
  • FOV: D:155° H:126° V:94°(4:3)
  • FOV: D:145° H:126° V:70°(16:9)
  • WDR
• Motors
  • Kv:28000
  • Stator diameter: 7mm
  • Stator length:2mm
  • Shaft diameter: Φ1mm
  • Weight:1.5g

Included

• 1x Happymodel Mobula6 Freestyle BNF
• 1x Spare canopy
• 1x Spare propeller(set)
• 1x Screw driver
• 1x propeller disassemble tool
